    HomeProductsResidential StorageKingsungo Energy Storage Battery System-10KWh

    LPBF48200-V1

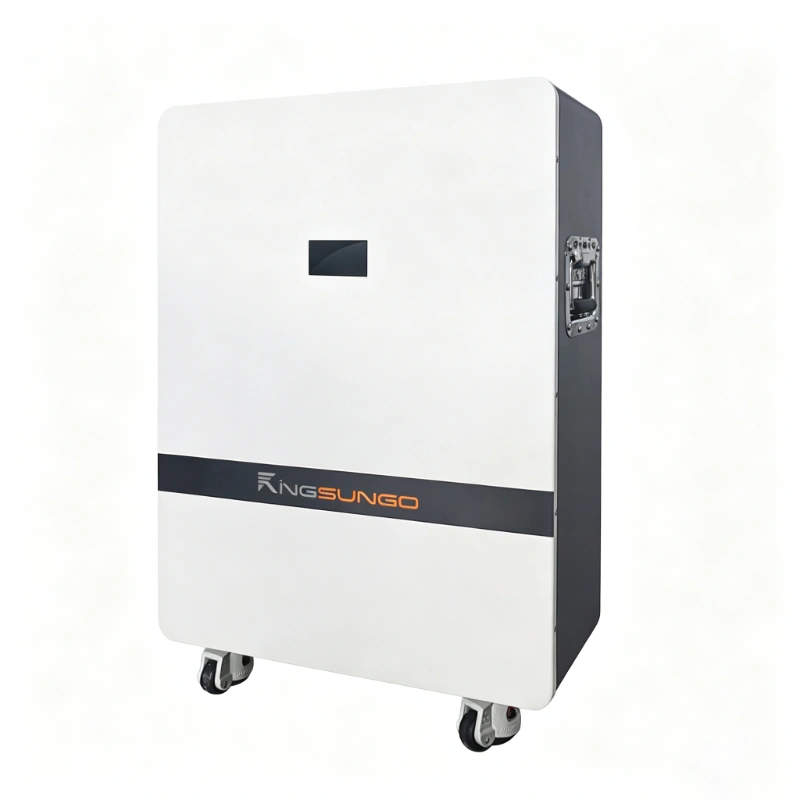

    Kingsungo Energy Storage Battery System-10KWh

    This is 10KWh LiFePO4 energy storage cabinet comes with smart BMS. It stores solar and grid power for residential and small commercial scenarios. It delivers emergency backup power and peak shaving benefits. With reliable safety performance, over 6000 times cycle life and simple installation, it is ideal for off-grid and self-consumption systems.

    • Battey type

      LiFePO4 (LFP)

    • Rated Energy

      10240Wh

    • Rated Voltage

      51.2V

    • Working Voltage

      44.8V-57.6V
    Inquire Now
    WhatsApp
    Download

    Share :

    Product description

    Key Features：

    <1> 10KWh Midium‑capacity LiFePO4 battery storage, delivers reliable backup power for whole‑house residential use

    <2> Built‑in intelligent BMS system for over‑charge, over‑discharge and short‑circuit protection for safe home energy storage

    <3> Compatible with most hybrid solar inverters, such as Sungrow,Deye maximizes solar self‑consumption for on‑grid household systems,support expanding up to 15 parallel connections.

    <4> WiFi remote monitoring support, real‑time check of battery status, power output and energy data

    <5> Long cycle‑life grade‑A battery cells, stable performance for emergency power outage backup,Cycle period exceeds 6000 times

    <6> Compact cabinet design for simple indoor installation, saves space for home solar energy setup.

    <7> Multiple safety certifications, UN38.3,MSDS,CE certificates meets global residential standards for home solar energy storage solutions

    Product Parameters：

    TypeParameters
    Battey typeLiFePO4 (LFP)
    Rated energy10240Wh
    Rated voltage51.2V
    Working voltage44.8V-57.6V
    Rated capacity200Ah
    Max charging & discharging current150A
    Peak charge & discharge current (15s)300A
    Expandability15
    Depth of Discharge (DOD)95%
    Communication methodCAN/RS485
    Charging temperature range0℃-55℃
    Discharge temperature range-20℃-55℃
    Environmental humidity for usemax90%
    Storage environment temperature-20℃-40℃（15℃-25℃ best）
    IP waterproof ratingIP54
    Cycle life≥6000 times

    Product advatages:

    <1> Grade A LiFePo4 battery cells

    <2> Can add wifi function module.

    <3> Annual product capacity can reach 1 GWh per year

    <4> Support CAN/RS485 communication, it is compatiable with the mainstream inverter in the market, such as Growatt, Deye,Victron,Techfine, ect.

    Overview:

    <1> This is a 10KWh 51.2V 200Ah LiFePo4 battery energy storage system, with BMS and protection modules

    <2> It can mitigate power outages, cut peak electricity cost and stabilize off-grid power supply.

    <3> It is suitable for household energy storage, small commercial store electricity, remote villas, agricultural power supply, etc.

    <4> Directly connect to PV grid/load; BMS auto-manages charge-discharge and safety protection.

    Application Scenarios：

    Factory
    Business districts
    Hospital
    Farm

    FAQs

    • Can you provide customized battery solutions for different applications?

      Yes. We provide customized lithium battery solutions based on different application requirements, including capacity, voltage, communication interfaces, appearance and system configuration. Our professional R&D and production team supports solution optimization from design to mass production.

    • Do you support OEM & ODM service?

      Yes, we support OEM & ODM service.

    • What is grade of the battery cell?

      Our battery cells are come from top domestic brand, such as CALB, REPT,SUNWODA, to ensure every of our finished product working smoothly in its lifetime.

    • Do you support 1pcs sample order?

      Yes, we do

    • What is the delivery time?

      Our delivery time normally is 15 to 25 working days, we will according to the real production schedule to make corresponding adjustment.

    • What is the payment terms?

      TT% and LC at sight are both available

    • What certifications can your company provide?

      UN38.3 transportation safty test report,MSDS & CE cerfication.

    • How does your company provide after-sales service?

      1. If the machine malfunctions, we can provide remote technical guidance within 24 hours to solve the problem. 2. If there are defects in the components of the product itself, we provide free accessories and the shipping cost is borne by the buyer. 3. If the entire machine fails and cannot be repaired, a replacement machine can be sent, and the customer will bear the shipping cost. The faulty machine will be destroyed locally.
