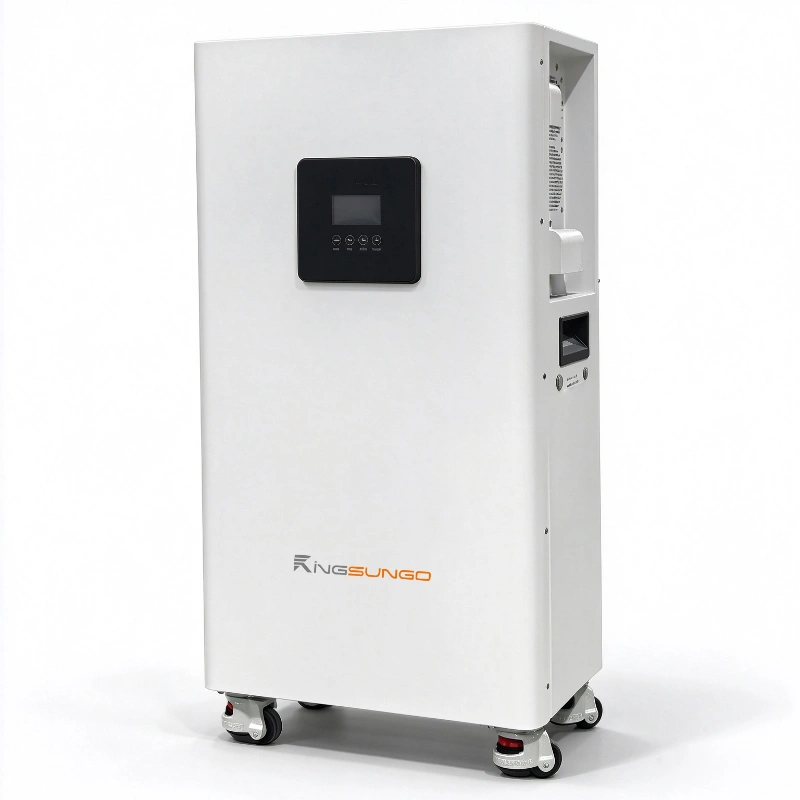

This 3.6kW+5kWh all-in-one home energy storage cabinet combines a hybrid inverter and LiFePO4 battery. Designed for off-grid household solar power supply, it features a built-in MPPT module to boost solar energy capture.
Adopting long-cycle LFP cells, it delivers stable power output with high safety performance. The intuitive LCD panel enables real-time data monitoring. Fitted with movable casters, it supports flexible placement and simple installation. Multiple safety protections guard against overcharge, overload and short circuit for reliable daily home power backup.
ESS 3.6KW+5KWh
Kingsungo Household All In One ESS 3.6KW+5KWh
-
Battey type
LiFePO4 (LFP)
-
Rated Energy
5120Wh
-
Rated Voltage
51.2V
-
Working Voltage
208/220/230/240V
Product description
Key Features：
<1> All-in-one ESS integrates 3.6kW hybrid inverter & 5kWh LiFePO4 battery.
<2> Off-grid solar power supply for household daily loads.
<3> Built-in MPPT controller maximizes PV energy harvesting.
<4> Long-cycle LiFePO4 cells with excellent safety & low attenuation.
<5> Intuitive square LCD panel for real-time system monitoring.
<6> Mobile casters for flexible placement & easy installation.
<7> Multiple protection functions: overcharge, over-discharge, overload & short circuit.
Product Parameters：
| Type | Parameters |
| Battey type | LiFePO4 (LFP) |
| Rated energy | 5120Wh |
| Battery Rated voltage | 51.2V |
| Working voltage | 208/220/230/240V |
| Rated capacity | 100Ah |
| Max charging & discharging current | 85A |
| Depth of Discharge (DOD) | 90% |
| Charging temperature range | 0℃-55℃ |
| Discharge temperature range | -20℃-55℃ |
| Environmental humidity for use | max95% |
| IP waterproof rating | IP20 |
| Cycle life | ≥6000 times |
Product advatages:
<1> Long-life LFP battery, stable output & superior safety for home use.
<2> All-in-one design: 3.6kW inverter + 5kWh LiFePO4 battery, saving installation space.
<3> Annual product capacity can reach 1 GWh per year
<4> Built-in MPPT maximizes solar power generation efficiency.
<5> Equipped with movable casters for easy relocation and setup.
Overview:
<1> This is a 10KWh 51.2V 100Ah LiFePo4 battery energy storage system, with BMS built in.
<2> It can mitigate power outages, cut peak electricity cost and stabilize off-grid power supply.
<3> It is suitable for household energy storage, small commercial store electricity, remote villas, agricultural power supply, etc.
<4> Directly connect to PV grid/load; BMS auto-manages charge-discharge and safety protection.
Application Scenarios：
