10KWh Home Energy Storage Cabinet with LiFePO4 battery, reliable whole‑home backup power for solar residential systems. Secure excess solar power, cut electricity bills and keep power running during grid outages.
LPBF48100HS-V1

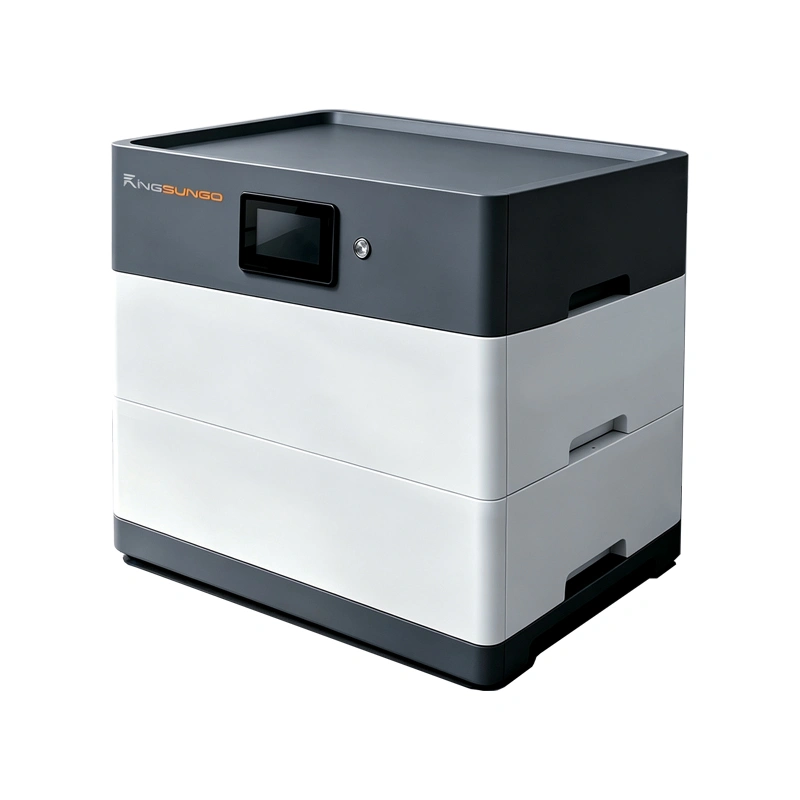

Kingsungo Stackable Energy Storage Battery System-10KWh
-
Battey type
LiFePO4 (LFP)
-
Rated Energy
5120Wh
-
Rated Voltage
51.2V
-
Working Voltage
44.8V-57.6V
Product description
Key Features：
<1> 10 KWh large‑capacity LiFePO4 battery storage, delivers reliable backup power for whole‑house residential use.
<2> Built‑in intelligent BMS system for over‑charge, over‑discharge and short‑circuit protection for safe home energy storage.
<3> Compatible with most hybrid solar inverters, such as Sungrow,Deye maximizes solar self‑consumption for on‑grid household systems,support expanding up to 8 layers.
<4> WiFi remote monitoring support, real‑time check of battery status, power output and energy data.
<5> Long cycle‑life grade‑A battery cells, stable performance for emergency power outage backup,Cycle period exceeds 6000 times.
<6> Compact cabinet design for simple indoor installation, saves space for home solar energy setup.
<7> Multiple safety certifications, UN38.3,MSDS,CE certificates meets global residential standards for home solar energy storage solutions.
Product Parameters：
| Type | Parameters |
| Battey type | LiFePO4 (LFP) |
| Rated energy | 5120Wh |
| Rated voltage | 51.2V |
| Working voltage | 44.8V-57.6V |
| Rated capacity | 100Ah |
| Max charging & discharging current | 100A |
| Peak charge & discharge current (15s) | 200A |
| Expandability | 8 |
| Depth of Discharge (DOD) | 95% |
| Communication method | CAN/RS485 |
| Charging temperature range | 0℃-55℃ |
| Discharge temperature range | -20℃-55℃ |
| Environmental humidity for use | max90% |
| Storage environment temperature | -20℃-40℃（15℃-25℃ best） |
| IP waterproof rating | IP54 |
| Cycle life | ≥6000 times |
Product advatages:
<1> Grade A LiFePo4 battery cells
<2> Can add wifi function module.
<3> Annual product capacity can reach 1 GWh per year
<4> Support CAN/RS485 communication, it is compatiable with the mainstream inverter in the market, such as Growatt, Deye,Victron,Techfine, ect.
Overview:
<1> This is a 10 KWh 51.2V 100Ah LiFePo4 stackable battery energy storage system, with BMS and protection modules
<2> It can mitigate power outages, cut peak electricity cost and stabilize off-grid power supply.
<3> It is suitable for household energy storage, small commercial store electricity, remote villas, agricultural power supply, etc.
<4> Directly connect to PV grid/load; BMS auto-manages charge-discharge and safety protection.
Application Scenarios：
